KJS180 Slitting Line Machine

KJS180 series are the best choice for coil procssing center user.

For Metals: such as mild steel, stainless steel, aluminum, copper, silicon steel, tinplate and other metal steel coils.

Description

Description

KJS180 series NC precision slitting production line is for material 3mm thick, max.1 600mm width of coil, with speed 180m/min, cutting strips 30 pieces.

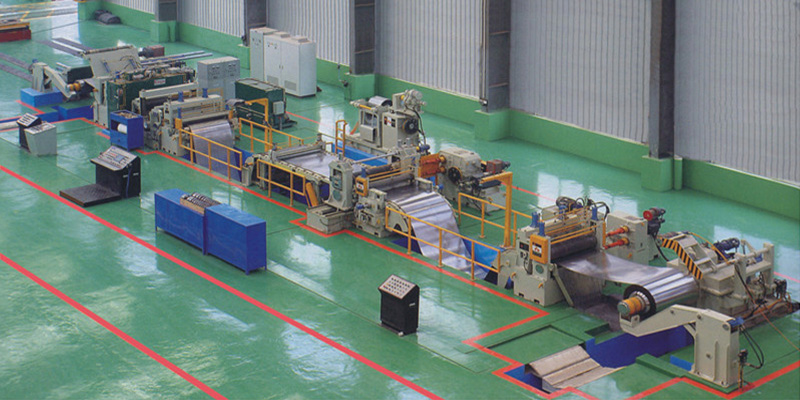

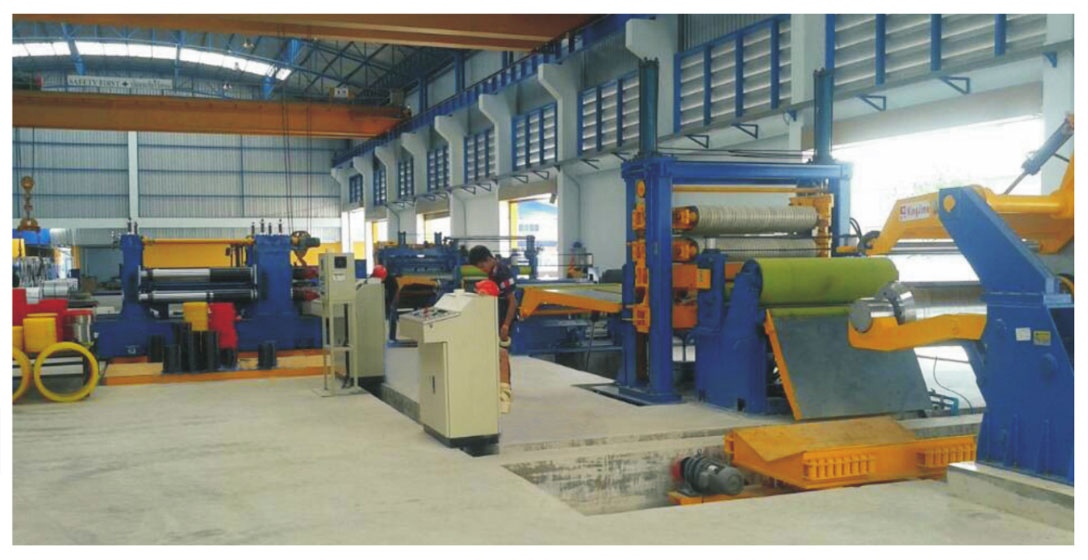

The machine consists of coil car, uncoiler, straightener, loop I, slitting machine, scrapwinder, loop II, tension unit (pad tension/belt bridle tension), belt brille, recoiler, asisting support, exit coil car, hydraulic system, electrical system etc.
With computer display, the whole line is controlled by PLC which is one of the brands including Mitsubishi, Siemens, and servo motor/inverter/electronic brand from Yaskawa, Delta, and Schneider.
Belt briddle tension the precision surface requirements with a big cost saving.
For Metals: carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium etc.
