About KingJime — KingJime Machine Co., Ltd., is the first company in China to manufacture coil line for press feed automation machine like3 in 1 .NC servo feeder, coil process production lines for cut-to-length, slitting line and pipes machine. As a professional company with integrated abilities of equipment research, manufacturing, sales and after-sale service, our products are widely used in industries such as hardware,die,metallurgy, steel cut processing, automobile and so on. Our company has passed as many authentications as ISO9001:2008 for quality management, ISO14001 :2004 for environment management,International Product Authentication applied by Guangdong Province, CE and export product quality permit certification. KingJime has established steady cooperation with customers in over 58 countries.
Local Support Worldwide —

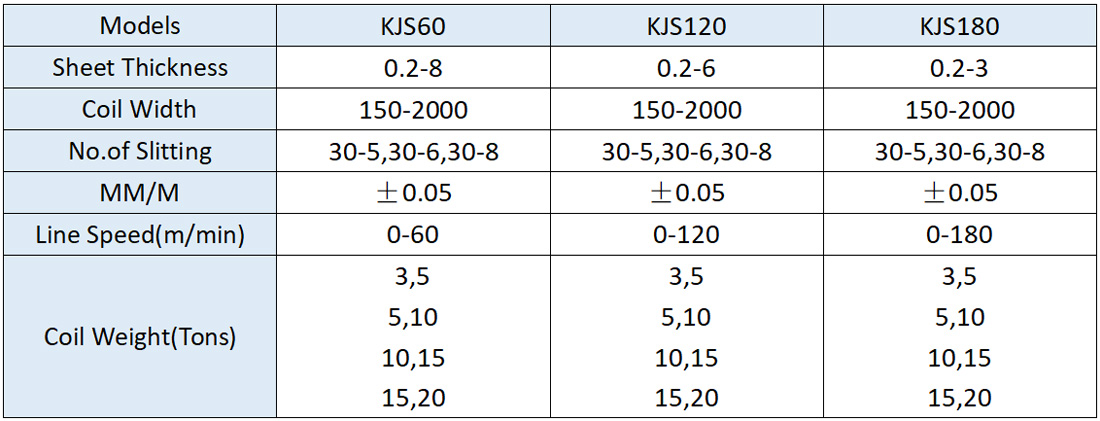

Slitting Line for Metal
- KJS60/KJS120/KJS180 series are the best choice for coil procssing center user. The machine consists of coil car, uncoiler, straightener, loop I, slitting machine, scrapwinder, loop II,tension unit(pad tension/belt bridle tension),belt brille, recoiler, asisting support, exit coil car, hydraulic system, electrical system etc.
- With computer display, the whole line is controlled by PLC which is one of the brands including Mitsubishi, Siemens, and servo motor/inverter/electronic brand from Yaskawa,Delta,and Schneider.
- Belt briddle tension the precision surface requirements with a big cost saving.
- For Metals: carbon steel,galvanized steel,silicon steel,tinplate, stainless steel, pre-painted steel, aluminium etc.
Slitting Line for Metal
- KJS60/KJS120/KJS180 series are the best choice for coil procssing center user. The machine consists of coil car, uncoiler, straightener, loop I, slitting machine, scrapwinder, loop II,tension unit(pad tension/belt bridle tension),belt brille, recoiler, asisting support, exit coil car, hydraulic system, electrical system etc.
- With computer display, the whole line is controlled by PLC which is one of the brands including Mitsubishi, Siemens, and servo motor/inverter/electronic brand from Yaskawa,Delta,and Schneider.
- Belt briddle tension the precision surface requirements with a big cost saving.
- For Metals: carbon steel,galvanized steel,silicon steel,tinplate, stainless steel, pre-painted steel, aluminium etc.
Cut to length Line for Metal

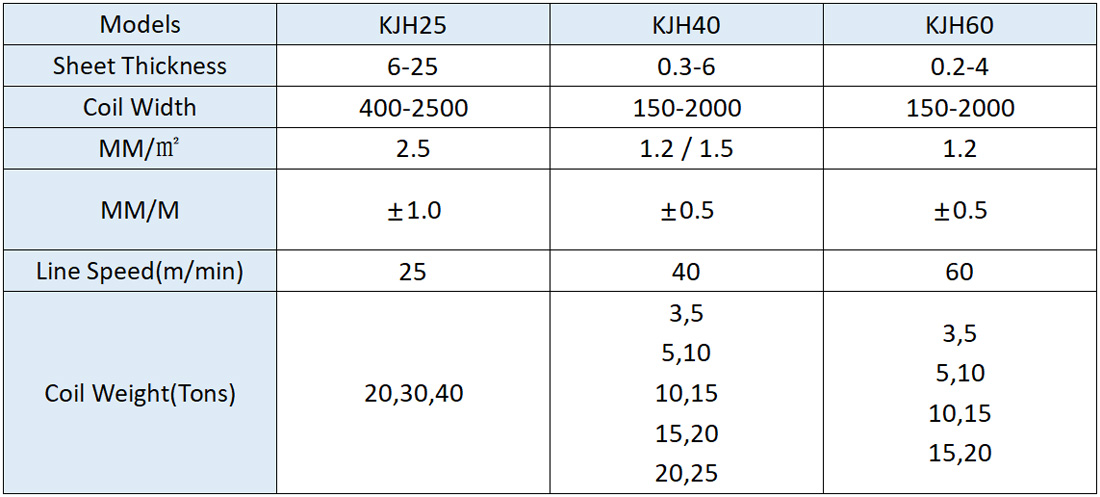

- KJH25/KJH40/KJH60 series NC servo automatic cut to length production line(metal coil leveling shearing line) is a precision production line equipment for uncoiling, straightening, measuring, cross-cutting to length and stacking.
- The machine consists of coil car, assisting support, decoiler, peeler device, leveler, coil guide, encoder scale, shearing machine, conveying table, stacker, output trolley, hydraulic system etc.
- With computer display, the whole line is controlled by PLC which is one of the brands including Mitsubishi, Siemens and servo motor/inverter/electrics brand from Yaskawa, Baumuller, Delta,and Schneider.
- This line is highly automatic with good straightening effect, precising cutting, efficient production, reliable performance, easy operation & maintenance.
- More functions can be added such as collecting and coating.
- For Metals: carbon steel,galvanized steel,silicon steel,tinplate, stainless steel, pre-painted steel, aluminium etc.
Cut to length Line for Metal
- KJH25/KJH40/KJH60 series NC servo automatic cut to length production line(metal coil leveling shearing line) is a precision production line equipment for uncoiling, straightening, measuring, cross-cutting to length and stacking.
- The machine consists of coil car, assisting support, decoiler, peeler device, leveler, coil guide, encoder scale, shearing machine, conveying table, stacker, output trolley, hydraulic system etc.
- With computer display, the whole line is controlled by PLC which is one of the brands including Mitsubishi, Siemens and servo motor/inverter/electrics brand from Yaskawa, Baumuller, Delta,and Schneider.
- This line is highly automatic with good straightening effect, precising cutting, efficient production, reliable performance, easy operation & maintenance.
- More functions can be added such as collecting and coating.
- For Metals: carbon steel,galvanized steel,silicon steel,tinplate, stainless steel, pre-painted steel, aluminium etc.

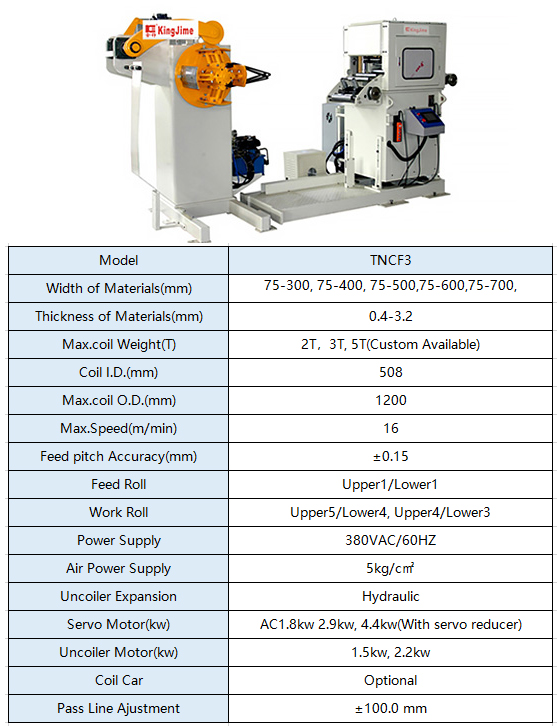

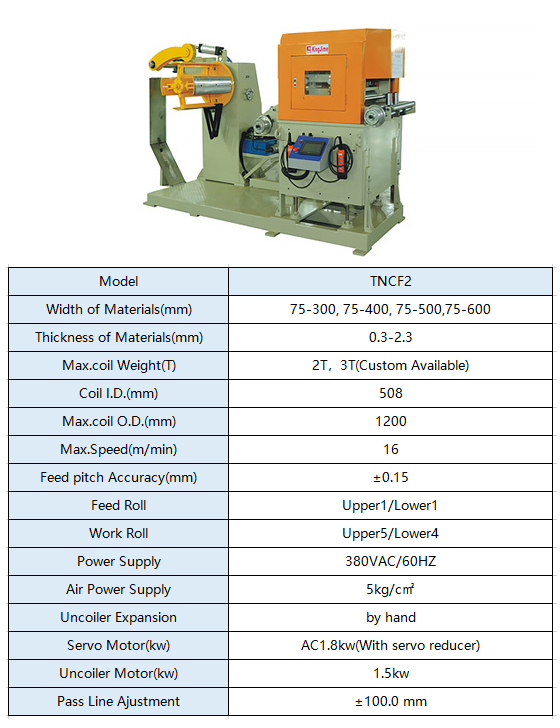

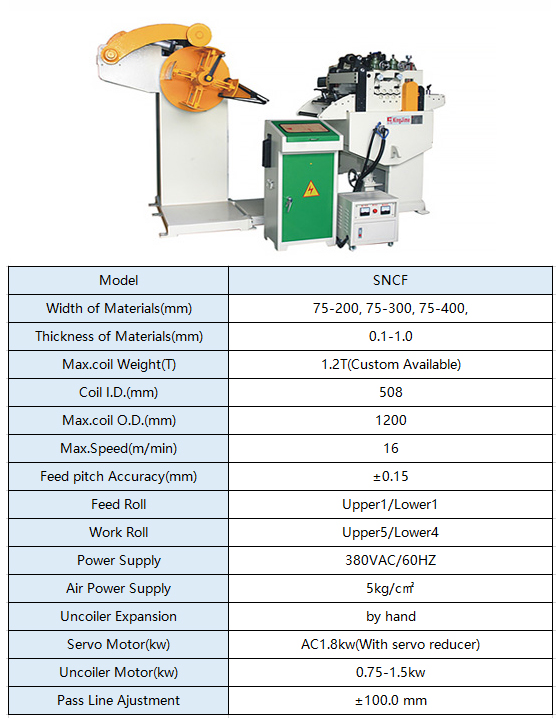

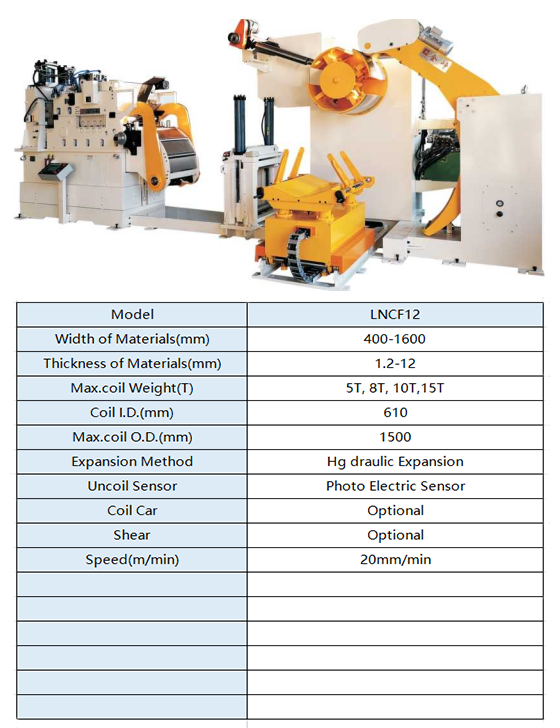

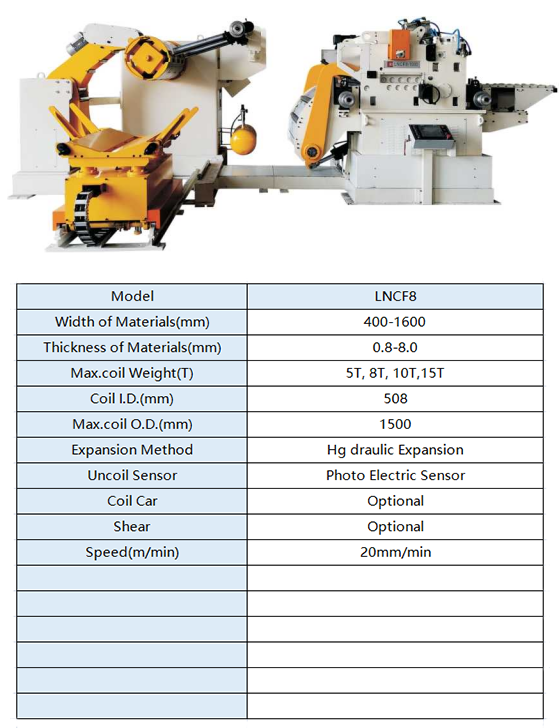

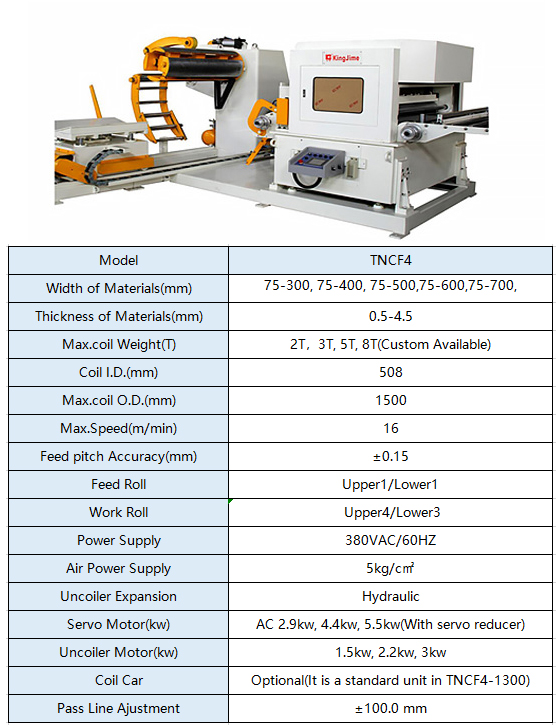

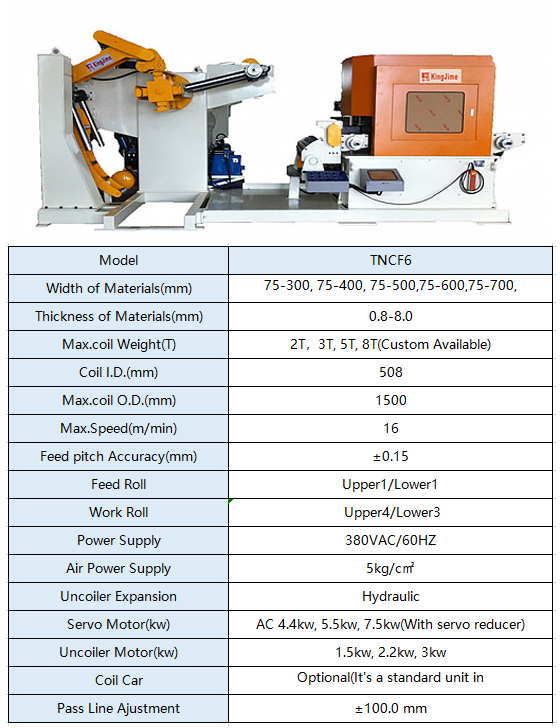

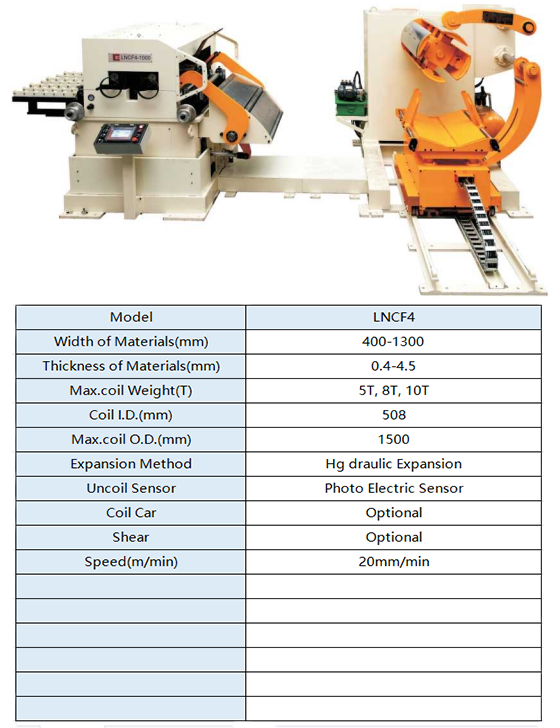

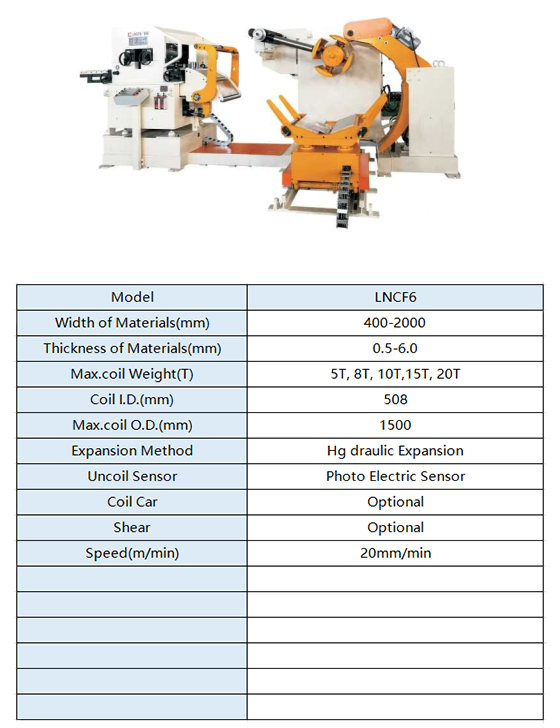

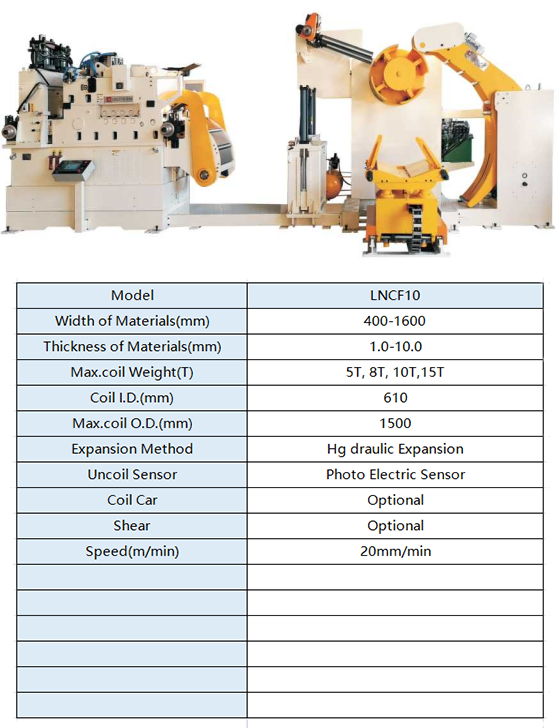

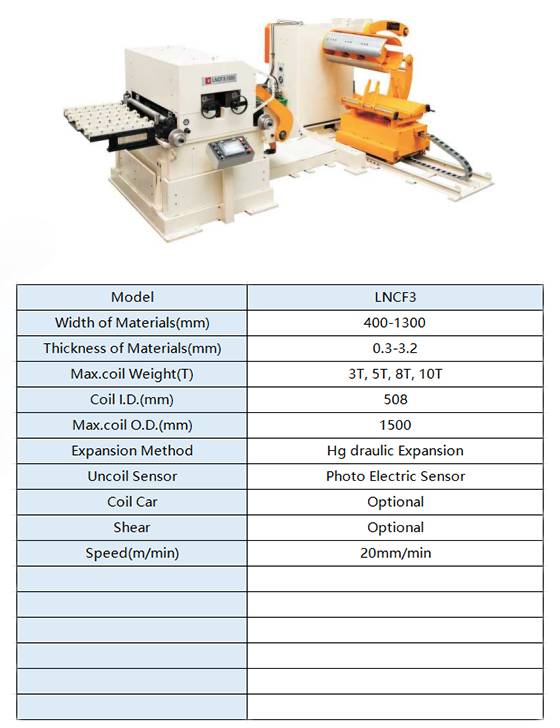

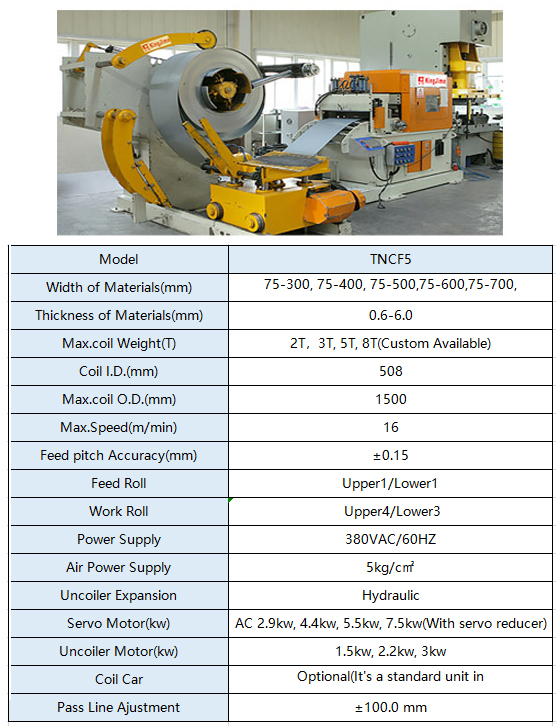

3 in 1 NC Servo Feeder Straightener & Uncoiler for Metal
- Upper roller adjustment by digital watch.
- Coil width adjusted by double handle wheel with precise scre word.
- Pass line can be adjusted by the lifter driven by motor.
- Coil side guide use one set hollow rolls mechanical back gauge device.
- Pinch roll and straightener roll material:high-strength alloy bearing steel withhard chrome plating.
- Hydraulic coil arm device.
- Motorized Snuber roll.
- Hydraulic guider.
- Hydraulic peeler table.
- Mitsubishi PLC control feeding program from Japan.
- Feed accuracy controlled by Japan YASKAWA servo motor with precise.
3 in 1 NC Servo Feeder Straightener & Uncoiler for Metal
- Upper roller adjustment by digital watch.
- Coil width adjusted by double handle wheel with precise scre word.
- Pass line can be adjusted by the lifter driven by motor.
- Coil side guide use one set hollow rolls mechanical back gauge device.
- Pinch roll and straightener roll material:high-strength alloy bearing steel withhard chrome plating.
- Hydraulic coil arm device.
- Motorized Snuber roll.
- Hydraulic guider.
- Hydraulic peeler table.
- Mitsubishi PLC control feeding program from Japan.
- Feed accuracy controlled by Japan YASKAWA servo motor with precise.
